CXC Series Imaging Luminance Colorimeter
High sensitivity and signal-to-noise ratio, excellent repeatability
Typical application scenarios
CXC series imaging luminance Colorimeter accurately matches with the tristimulus value of CIE1931, can realize the measurement of 2D luminance and chromaticity, mainly used for the measurement of 2D luminance and chromaticity uniformity, with good imaging quality, high accuracy, fast measurement speed, easy operation and other advantages. It can be widely used in LCD, OLED, projection display, automotive lighting, luminous characters and other fields. Good stability and repeatability, not only suitable for laboratory measurement, but also for optical quality control in production lines.
Main characteristics
1.One sampling complete the test
The system adopts a scientific-grade constant temperature cooling array detector, and the spectral response of the detector highly matches the human eye tristimulus value curve, which can quickly and accurately obtain the luminance and chromaticity data of each point in the field of view, and analyze the uniformity.
2.Low luminance&High repeatability
High quality constant temperature refrigeration detector, with professional noise circuit design, even in low luminance, still can ensure high measurement repeatability and stability.
3.Wide linear dynamic range &High accuracy
In addition to adopting a scientific-grade area array detector with good linearity, it also adopts high-definition dynamic range (HDR) technology,which can achieve a measurement linearity of less than 1% within 7 orders of magnitude.
4.Advanced AI algorithms
The system is compatible with intelligent image recognition and other algorithms, and can be oriented to a variety of measurement objects (such as shaped screen, curved screen), according to customer needs to develop luminance and chromaticity uniformity analysis function, support the display defect (MURA) evaluation.

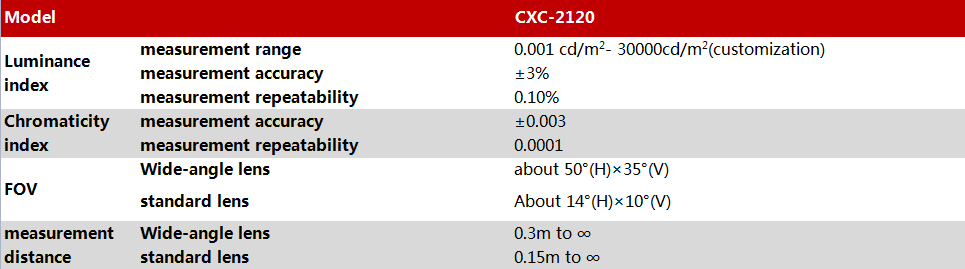

Technical Specifications
