CTS-2000 Compliance Test System
Emission testing and Immunity testing
Typical application scenarios
CTS-2000 system can carry out both emission test and immunity test. It is composed of HFA series harmonic and scintillation analyzer, LIN series impedance, HIS series programmable AC and DC power supply and special analysis software. HFA series harmonic scintillation analyzer through the digital phase-locked loop, the measurement window (10 cycles /12 cycles) in strict accordance with the standard and power supply frequency (50Hz/60Hz) to maintain synchronization, to achieve the harmonic voltage, harmonic current and flicker fully compatible test and analysis of the equipment under test and generate detailed test reports. HIS series power supply has the characteristics of high stability, low harmonic distortion, wide voltage input, etc., and can provide pure and stable sinusoidal voltage signal under the condition of load change and supply voltage fluctuation. At the same time, it can simulate a variety of interference waveforms in AC power grid and DC power supply environment, and with HFA harmonic and flicker analyzer, it is used to test the immunity of electrical equipment connected in low-voltage distribution system.
Main characteristics
1. EMI Emission Test
EN/IEC 61000-3-2
EN/IEC 61000-3-3
EN/IEC 61000-3-11
EN/IEC 61000-3-12
2. EMS Immunity Test
EN/IEC61000-4-13（Harmonic and interharmonic immunity）
EN/IEC61000-4-14（Voltage fluctuation immunity）
EN/IEC61000-4-17 （DC ripple immunity）
EN/IEC61000-4-27（Three-phase voltage imbalance immunity）（pretest）
EN/IEC61000-4-28（Power frequency change immunity）
EN/IEC61000-4-29 （DC voltage change immunity）（pretest）

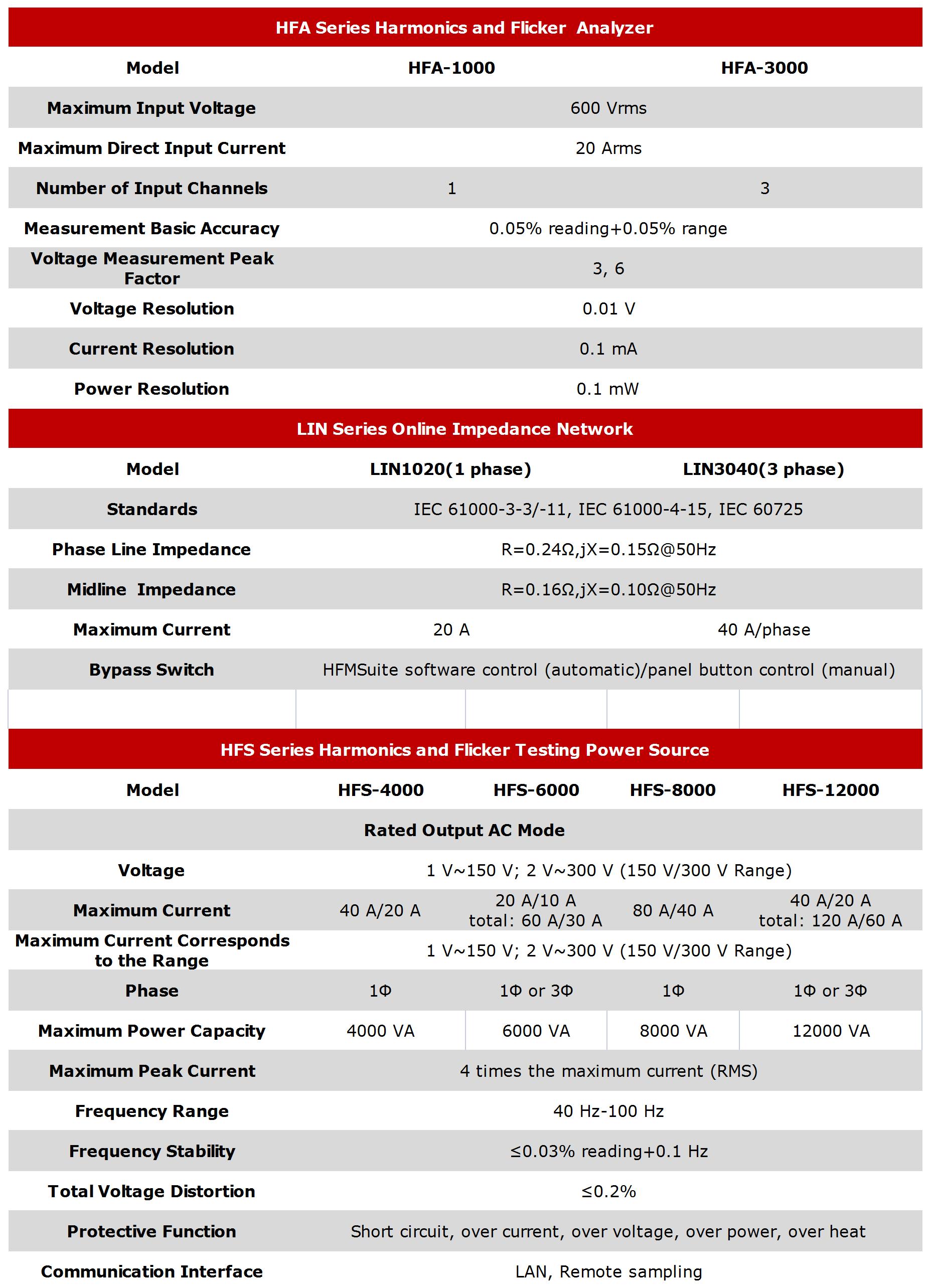

Technical Specifications
| HFA series Harmonics & Flicker Analyzer | |||||
| Model | HFA-1000 | HFA-3000 | |||
| Max Input Voltage | 1000Vrms | ||||
| Max Direct Input Current | 100Arms | ||||
| Number of Input Channels | 1 | 3 | |||
| Basic Accuracy | 0.05%rdg+0.05%rng | ||||
| Voltage Crest Factor | 3 、 6 | ||||
| Voltage Resolution | 0.01V | ||||
| Max Current Resolution | 0.1mA | ||||
| Max Power Resolution | 0.1mW | ||||
| Storage Interface | USB Flash Drive (Supports on-device PDF report generation) | ||||
| LIN series Line Impedance Network | |||||
| Model | LIN1020 | LIN3020 | LIN3075 | ||
| Phase | Single Phase | Three Phase | Three Phase | ||
| Applicable Standard | IEC 61000-3-3,IEC 61000-4-15,IEC 60725 | ||||
| Impedance | Phase Neutral | R=0.24Ω，jX=0.15Ω @50Hz R=0.16Ω，jX=0.10Ω @50Hz | R=0.24Ω/0.15Ω jX=0.15Ω @50Hz R=0.16Ω/0.10Ω jX=0.10Ω @50Hz | ||
| Max Current | 20A per phase | 20A per phase | 75A per phase | ||
| Bypass Switch Control | HFMSuite software control (Auto)/Panel button control (Manual) | ||||
| HIS series Programmable AC/DC Power Supply | |||||
| Model | HIS-4000 | HIS-12000 | HIS-60000 | ||
| Rated Output AC Mode | |||||
| Phase | 1φ | 1φor3φ | 1φor3φ | ||
| Voltage | AC:300V(L-N),DC:424V | AC:300V(L-N),DC:424V | AC:600V(L-N),DC:850V | ||
| Max Current | 40A | 40A per phase，Total：120A | 120A per phase，Total：360A | ||
| Max Power Capacity | 4000VA | 12000VA | 60000VA | ||
| Max Peak Current | 4× Max Current (RMS) | ||||
| Frequency Range | 40Hz~100Hz | 40Hz~100Hz | 15Hz~2500Hz | ||
| Frequency Stability | ≤0.03%reading＋0.1Hz | ||||
| Total Voltage Distortion | ≤0.2%@40Hz~65Hz ≤0.3%@65.1Hz~100Hz | ≤0.2%@40Hz~65Hz ≤0.3%@65.1Hz~100Hz | ≤0.3%@50Hz/60Hz <1%@15Hz-400Hz <1.5%@400Hz-1000Hz | ||
| Protection Features | Short circuit, Overcurrent, Overvoltage, Overpower, Overtemperature | ||||
| Communication Interface | LAN, Remote sense | ||||
