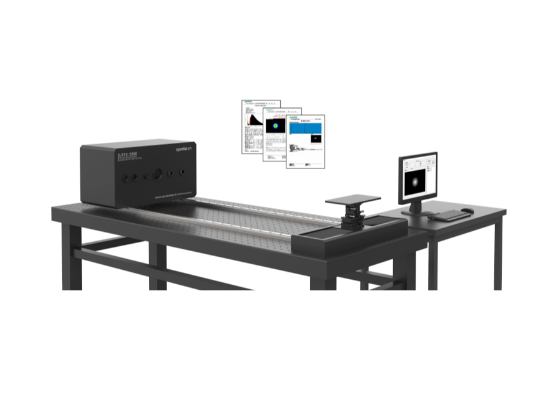

LSTS-2000 Laser Safety Test System
LSTS-2000 can measure the radiation parameters about all kinds of laser and classify the corresponding safety level, refer to IEC 60825.1-2014 and IEC 60825.2-2021
Typical application scenarios
The system adopts compact structure, it can automatically measure the diameter of the source on the apparent surface, angular subtense, spectral radiation distribution, radiation power and emission limit and etc, matching pulsed recognition to test the pulse energy, peak power and average power of the nanosecond laser pulse. It can classify the safety level for light source in standard with automatic, excellent repeatability and more accurate measurement result, which is especially suitable for the measurement and classification of all kinds of semiconductor lasers, solid-state lasers, fiber lasers, etc.
Main characteristics
1. Comprehensive laser radiation safety testing
Leveraging EVERFINE’s patented technologies, it measures spectral distribution, apparent source size, angular subtense, condition 1 & 3 radiant power, pulse energy, AEL, average power, etc., covering all standard‑required parameters and automatically assigning laser class based on emission limits.
2. Wide radiometric measurement range
Spectral coverage 200–20000 nm (optional), power up to 50 W (optional); fast, sensitive, and accurate detector suitable for both CW and pulsed lasers.
3. Superior detector performance
Features a thermoelectrically cooled laser apparent power distribution analyzer for one‑key IEC 60825‑1 compliant measurement, delivering angular subtense, power, energy, and laser class. Built‑in algorithms identify worst‑case hazards, eliminating manual errors and ensuring accuracy and efficiency.
4. Precision alignment
Equipped with a high‑precision adjustable stage for accurate laser source alignment and fine adjustment.
