EVERFINE offers measurement solutions for various projection display equipment in many filed include commercial, family, conference, vehicle, measurement, etc. Solutions carry out comprehensive measurement and analysis of photometric and colorimetric properties for traditional projectors, portable projectors, short throw projectors, laser TV, holographic projectors, vehicle interactive projection equipment, somatosensory interactive projection equipment, etc. Measurable items include luminance, illuminance, chromaticity coordinates, CCT, CRI, spectral power distribution, luminance and chromaticity uniformity, color space, luminous flux, hazard classification of radiation exposure, specific effective radiant ultraviolet power, size of the apparent source, maximum radiation position and safety level classification of the light source. Our solutions refer to various international and national standards of projectors and projection TV products such as SJ/T11346, SJ/T11298, etc.

Projector Illuminance, Chromaticity Uniformity Optical Performance Test

POPA-2000 projector optical analyzer undertake the 9-point test and it is mainly used to analyze the illuminance, chromaticity coordinates, CCT, CRI, spectral power distribution and other photometric and colorimetric properties of the certain points.. System using software feedback of the luminance and chromaticity uniformity of the entire plane to evaluate the relevant optical characteristics of the projector. POPA-2000 refers to the relevant international and domestic standards of projectors and projection TV products such as SJ/T11346, SJ/T11298.

Projected Display of the Spectrum and Luminance Test

SRC series integrating spectrum, luminance and chromaticity measurement functions, maintains excellent accuracy and fast measurement speed even at low luminance. All these features make SRC series meet the high-accuracy measurement requirement for R&D purposes. SRC series is widely used in traditional projectors, portable projectors, short focus projectors, laser TV, holographic projection, vehicle interactive projection equipment, somatosensory interactive projection and other projection devices. Measurable items include luminance, radiance, relative spectral power distribution, chromaticity coordinates, color space mode(Lv x y, Lv u' v', Δuv, XYZ) CCT, CRI, peak wavelength, FWHM, CRI, purity, red ratio, SDCM, dominant wavelength and other spectrum&luminance&chromaticity properties.

推荐产品

SRC-200 Spectral Radiance Colorimeter

SRC-600 Spectral Radiance Colorimeter

Projector Spectrum, Color Temperature, Illuminance Detector

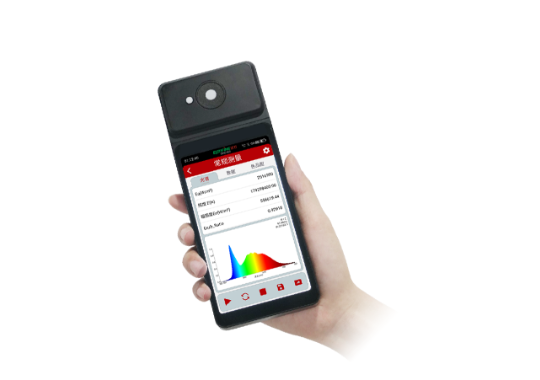

SPIC-300 spectral irradiance colorimeter combining multiple advanced patent technologies, integrating spectrum, luminance, and chromaticity measurement functions. SPIC-300 comes with a 360-degree acquisition sampling probe(via Bluetooth) and built-in memory storage, which can transfer data via Wi-Fi. SPIC-300 also employs mature portable spectrum measurement technology and fulfills the photometric and colorimetric measurement requirements of the projection display industry. SPIC-300 is suitable for traditional projectors, portable projectors, short throw projectors, laser TVs, holographic projections, vehicle interactive projection equipment, somatosensory interactive projection and other types of projection equipment measurement, our SPIC-300 can be applied for projection product development, in-line QA, and other application scenarios. Measurable items include illuminance, relative spectral power distribution, chromaticity coordinates, correlated color temperature, color rendering index, spectral radiance and other photometric and colorimetric parameters measurement at any position of the illuminance surface of various projection equipment.

Image Quality Analysis of the Projection Display

CXC series imaging luminance colorimeter accurately matches the color matching function of CIE1931, through one sampling measurement can obtain the luminance, chromaticity and uniformity information of every point in the field of view. Instruments can be used for measuring luminance, luminance uniformity, chromaticity coordinates, distortion, chromaticity uniformity, ghosting, sharpness (MFT), dirt, dead pixels, light leakage, screen alignment and other imaging performance properties of projection displays. CXC series have excellent imaging quality, high accuracy, fast measurement speed and friendly interface for convenient operation. All these features make CXC series not only suitable for laboratory measurement, but also can be applied to optical quality control in the production line. CXC series are suitable for traditional projectors, portable projectors, short throw projectors, laser TVs, holographic projections, vehicle interactive projection equipment, somatosensory interactive projection and other types of projection equipment measurement

推荐产品

CXC-2120 Imaging Luminance Colorimeter

The Projector Optical Radiation Safety Test System

SRS-200A is the new generation of portable photobiological safety assessment equipment, SRS-200A spectral radiance safety test system can realize on-site measurement of spectral radiance curve, retinal blue light hazard coefficient, weighted radial luminance, circadian action factor and other parameters, and can automatically classify the blue light hazard level.

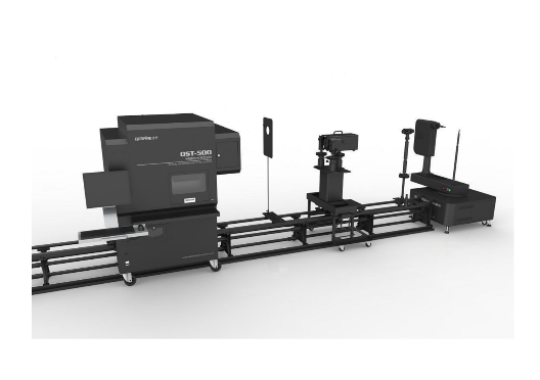

OST-500 optical radiation safety measurement system is equipped with a precision automatic dual-axis roatation platforms, which can automatically find and obtain the maximum radiation position, and automatically measure the light hazard value of projection equipment equipped with various light sources at the maximum radiation position, and classify the safety level.

OST-500 Optical Radiation Test System

The Projector Luminous Flux, Spectral Distribution Test

PCE-2000 Opto-Electronic Measurement System can be widely used in traditional projectors, portable projectors, short throw projectors, laser TVs, holographic projections, vehicle interactive projection equipment, somatosensory interactive projection and other projection equipment measurement. Measurable items include relative spectral power distribution, chromaticity coordinates, dominant wavelength, peak wavelength, spectral purity, CCT, CRI, luminous flux, radiation power and other parameters to meet the photometric and colorimetric measurement requirements of the light source. System can be remotely control to undertake measurement and analysis, combine with EVERFINE’s powerful software to establish
