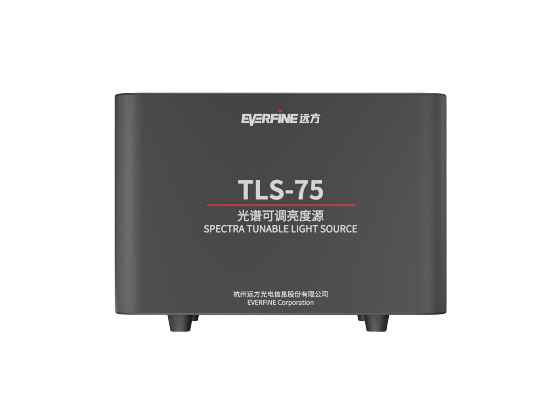

TLS-75 Spectra Tunable Light Source
Simulate Any Spectrum in the 380nm-1000 nm Range
Typical application scenarios
The TLS‑75 can simulate and output almost any typical indoor and outdoor light sources. It also provides high‑dynamic‑range luminance or illuminance output with high‑resolution adjustment via intelligent control software. It is widely applicable to calibration and measurement of ambient light sensors (ALS), infrared proximity sensors, and luminance meters, as well as measurements of dynamic range, uniformity, and spectral sensitivity of cameras.
Main characteristics
1.Built‑in standard illuminants including CIE A, D series, and LED illuminants, along with dozens of others; also supports user‑defined spectral matching output.
2.Precisely reproduces any color temperature light source from 2000 K to 25,000 K, providing standard chromatic light for camera and image sensor color balance calibration.
3.Output aperture of 50 mm with high uniformity exceeding 98% across the output surface.
4.Meets the bandwidth requirements specified by MVA 1288, satisfying colorimetric calibration and measurement needs for image sensors.
5.Stable output with a built‑in high‑precision monitoring detector, fully suitable for high‑accuracy calibration and measurement applications, particularly ideal for onboard sensor calibration and testing.
