DMS-8500 Optical Property Test System
High degree of automation, one time to complete all the tests
Suitable for large flat panel displays
Typical application scenarios

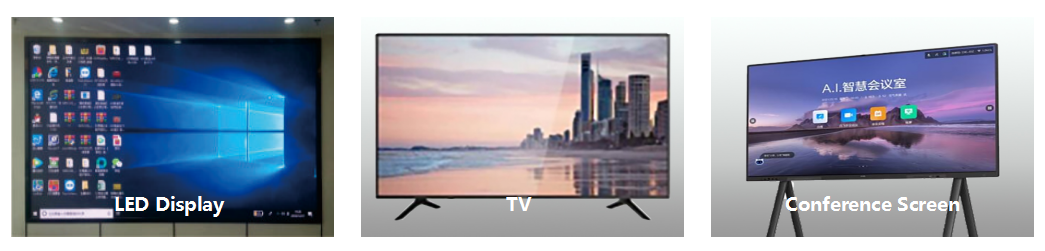

DMS-8500 optical property test system is mainly used to test the luminance, chromaticity, uniformity, viewing Angle and other conventional Photometric & Chromaticity characteristics test, instantaneous characteristics and other parameters test of TV, educational screen, conference screen and other large size flat panel display, referring to IDMS, VESA, IEC, TCO and other domestic and international standards test requirements.
Main characteristics
1.Integrated spectrum, luminance, chromaticity measurement
Equipped with high-precision Spectral Radiance Colorimeter, luminance, spectrum and chromaticity measurement functions in one, the highest sensitivity of up to 0.0005 cd/㎡, low luminance can also maintain excellent accuracy and speed, is the standard machine for luminance and chromaticity measurement.
2.Automation
Precision multi-axis rotation device, mechanical rotation, high positioning accuracy, can achieve the display Angle of view, uniformity and other characteristics of accurate testing;
3.Powerful software
It can realize luminance uniformity, chromaticity uniformity, chromaticity coordinate , relevant color temperature, color gamut area, color gamut coverage, visual Angle, response time (rise time, drop time), contrast, black and white window luminance contrast,flicker, crosstalk, etc.;

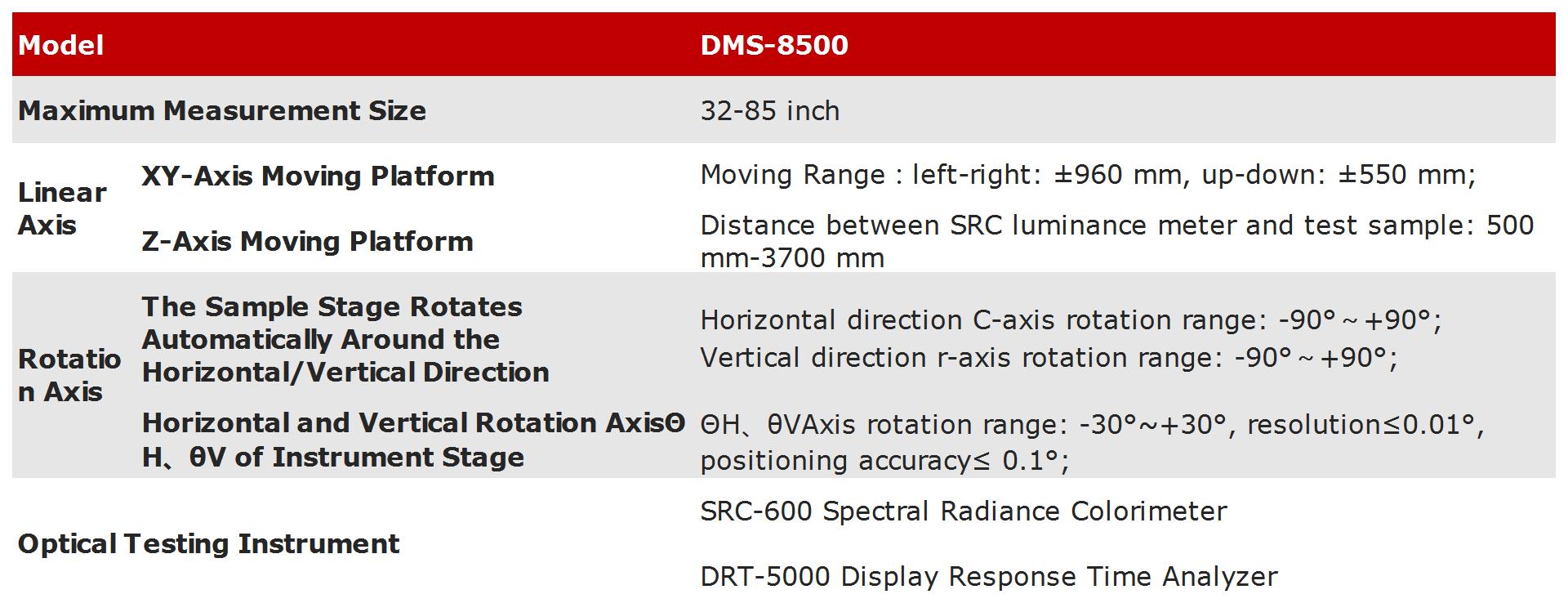

Technical Specifications
