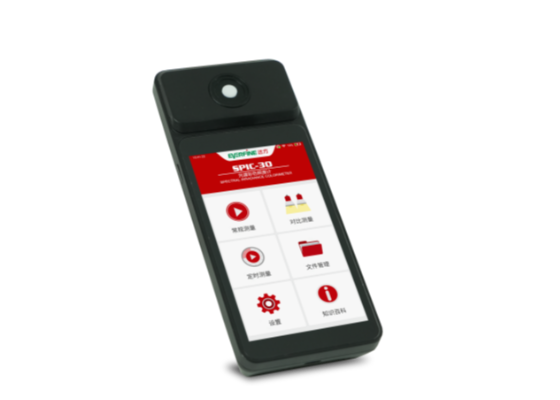

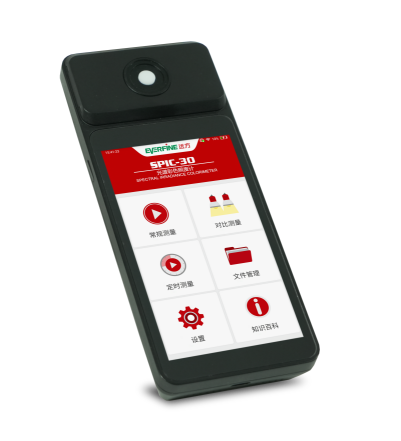

SPIC-30SE Spectral Irradiance Colorimeter

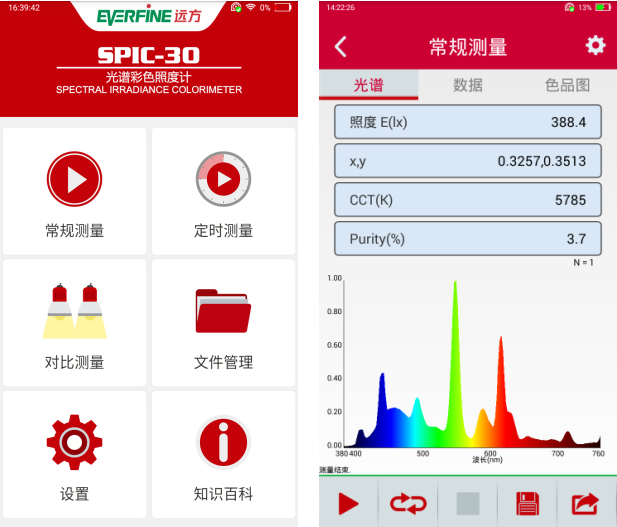

Integrated design with large touch-screen display

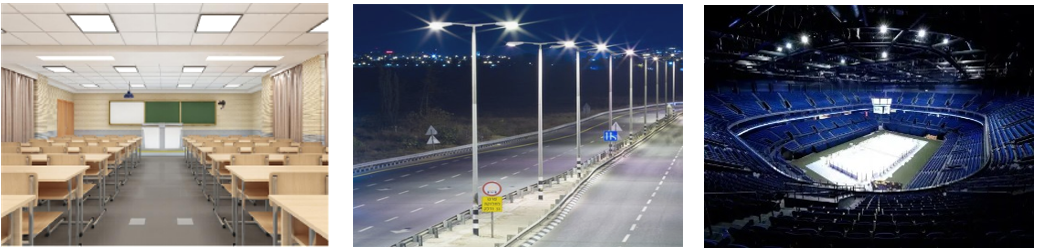

Typical application scenarios
The SPIC-30SE Spectral Irradiance Colorimeter features professional intelligent configuration. One-touch operation completes measurement and analysis in a single step with real-time data readout. It is suitable for on-site lighting measurements in field environments, buildings, indoor spaces, workplaces and shopping malls, as well as R&D, quality inspection and production line monitoring of lighting products.
Main characteristics
1.Intelligent testing software
The software can be expanded in accordance with the latest standards and customer requirements, supporting standard measurement and analysis such as mesopic photometric parameters, S/P ratio and IES equivalent illuminance.
2.Integrated functions for spectrum, illuminance and color measurement

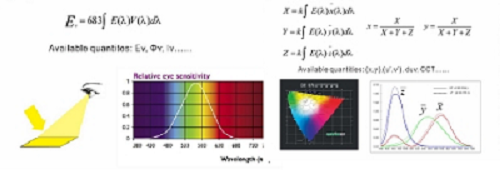

SPIC-30SE measures photometric and colorimetric parameters including illuminance, spectral irradiance, relative spectral power distribution, chromaticity coordinates, correlated color temperature and color rendering index.
3.Traceable Measured Values
Accredited calibration certificates ensure metrological traceability with excellent measurement accuracy and repeatability.
4.Compact & User-friendly Design
Large display with one-touch operation enables real-time data reading. The probe supports flexible multi-angle sampling for various application scenarios.
5.High measuring speed, high accuracy and ultra-wide measurement range

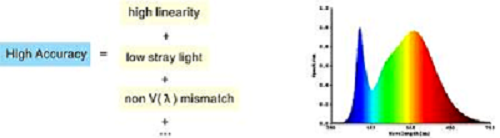

Free of V(λ) mismatch error and with minimal stray light interference to guarantee high-precision measurement. It delivers millisecond-level precise testing and greatly boosts efficiency for on-site lighting measurement.
6.Photometry measurement for photopic, mesopic and scotopic vision

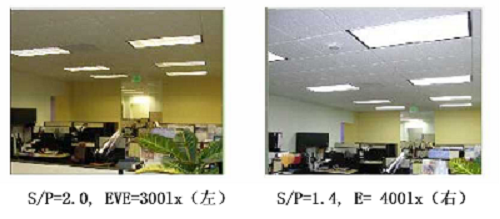

The software performs automatic calculation of S/P ratio and IES standard equivalent illuminance, applicable to design and research of roadway and indoor lighting.
