PCE-2000 Opto-Electronic Measurement System for Medical Light Source
For medical aesthetic products: spectral power distribution, wavelength, radiant flux, etc. – conforming to CIE photometric and colorimetric standards
Typical application scenarios

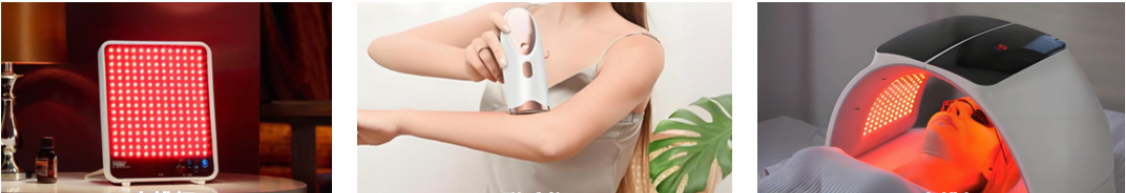

The system is used to measure parameters such as irradiance, radiant exitance, spectral power distribution, peak wavelength, color temperature, half‑width, luminous flux, and radiant flux of various medical and aesthetic light sources including dental curing lights, infrared therapy light sources, beauty masks, LED light therapy devices, and others. It conforms to the requirements of CIE. It supports optical measurement requirements across the wavelength range of 200 nm to 2500 nm through various configurations.
Main characteristics
1. Millisecond‑level Measurement Speed with Scientific‑grade Accuracy
Measures parameters such as radiant exitance, radiant flux, spectral power distribution, wavelength, and color rendering index, achieving millisecond‑level speed and scientific‑grade accuracy. Adopted by numerous research and quality inspection institutions and laboratories, it meets the measurement requirements for both continuous and pulsed light sources.
2. Low Stray Light and High Photometric Linearity
Incorporating EVERFINE’s proprietary BWCT technology and modified NIST stray‑light correction technology, along with other patented technologies, the core instrument achieves ultra‑low stray light of 5.00×10⁻⁵ and full‑dynamic photometric linearity of 0.3%.
3. High Wavelength Resolution, High Measurement Accuracy, and Wide Linear Dynamic Range
With over 30 years of spectrometer R&D and manufacturing experience and multiple patented technologies, its unique design and superior performance deliver wavelength resolution up to 1 nm, wavelength accuracy up to 0.2 nm, and a wide linear dynamic range, making it especially suitable for high‑precision third‑party testing institutions and medium‑to‑large medical enterprises.
4. Excellent Integrating Sphere Performance
The integrating sphere features EVERFINE’s proprietary Spetralon coating, with reflectance strictly controlled at high levels across the UV‑VIS‑NIR range. The special spraying process ensures resistance to peeling and good chemical stability, providing excellent Lambertian optical characteristics. The sphere body is made of steel, offering an attractive appearance and resistance to deformation.
