SRC-200 Spectral Radiance Colorimeter
Integrated spectrum, luminance, colorimetric measurement functions in one
Typical application scenarios
SRC-200 spectral radiance colorimeter is mainly used to measure luminance, spectral distribution and colorimetric parameters of various displays. It is widely used in FPD display, backlight, lighting engineering, light source and light emitting component, movie and television, traffic signal, construction, atmospheric luminosity and other fields.
Main characteristics
1.Integrated spectrum, luminance, chromaticity measurement
The parameters that can be measured by the system include luminance, relative spectral power distribution, chromaticity coordinate, correlation color temperature, color rendering index, color gamut coverage, etc., covering the luminosity, spectrum and color parameters of the measured object.
2.High measurement accuracy
The system uses spectral method (spectrophotometry) to measure luminance and color parameters, it has no V（λ) and tristimulus mismatching error compared with tristimulus-filter detector.
3.High reliability&Great cost-effective
The measurement technology of spectral has been maturely applied in the past 20 years, it offers high reliability&stability and great cost-effective ratio. More than 10,000 customers all over the world choose this method.
4.Convenient storage and data transfer functions
SRC-200 can store 200 groups of test data, and can realize data transmission via WiFi, it can connect to a laptop computer to remote control instrument measurement and data transmission.

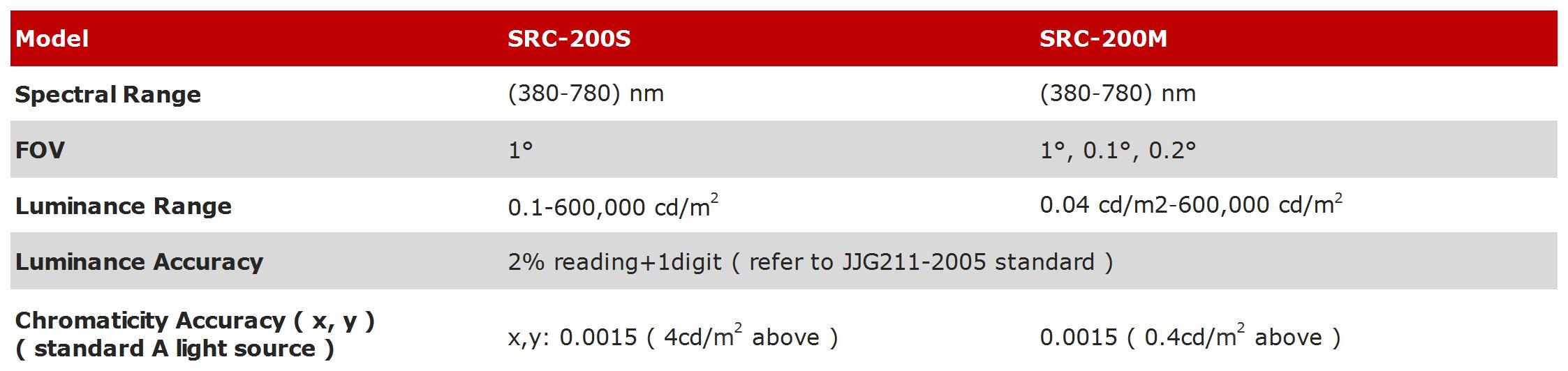

Technical Specifications
| 型 号 | SRC-200S | SRC-200M |
| 光谱范围 | (380~780)nm | (380~780)nm |
| 测量视场角 | 1° | 1°、0.1°、0.2° |
| 亮度测量范围 | 0.1~600,000 cd/m² | 0.04~600，000cd/m² |
| 亮度精度 | 2%读数+1个字(按国家计量检定规程JG211-2005方法检验) | |
| 色度准确度(,y)(标准A光源) | xy: 0.0015(4cd/m²以上) | 0.0015 (0.4cd/m²以上) |
