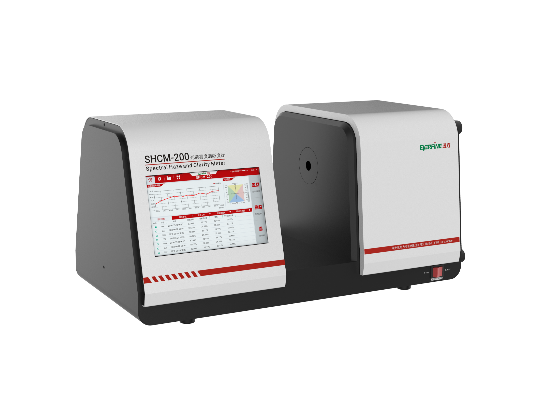

SHCM-200 Spectral Haze and Clarity Meter
High Accuracy and Fast Spectral Measurement Technology
Compatible with Clarity, Haze, Transmittance and Color Measurement
Typical application scenarios
SHCM-200 Spectral Haze and Clarity Meter integrates a variety of functions such as spectrum, transmittance, haze and clarity, which is mainly used for all kinds of cover glass, film, plastic sheet and other materials measurement under different light source performance test. Designed according to ASTM D1003, GB/T 2410, ISO14782, JC/T2130-2013, JIS K7105-81, ISO13468, etc. standards, SHCM-200 with the open measuring chamber is suitable for the test requirements of large and small samples.
Main characteristics
1. Comprehensive analysis of transmission

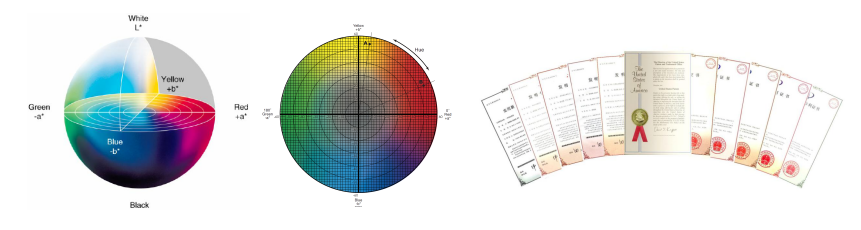

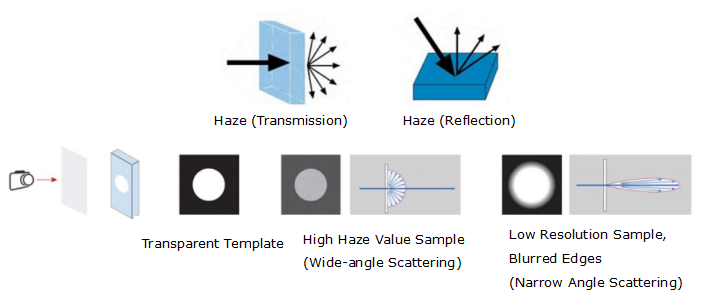

It integrated clarity, haze, spectral transmittance, light transmittance, color, color difference and other measurement functions in one, can be used for all kinds of cover glass, lenses, films, plastic sheets and other materials, clarity, haze, light transmittance and materials under different light source color.
2. High measurement accuracy
Nearly 30 years of spectrometer R&D and production experience, dozens of patented technologies to make sure the system has excellent spectral transmittance measurement and spectral color measurement performance, high measurement accuracy.
3. Compatible with ASTM and ISO total transmittance test standards
Built-in the integrating sphere with Spektron inner coating patented by EVERFINE, more stable performance, longer life.
4. Suitable for size samples
A variety of fixtures or accessories can be selected to meet the measurement requirements of liquid and solid samples.

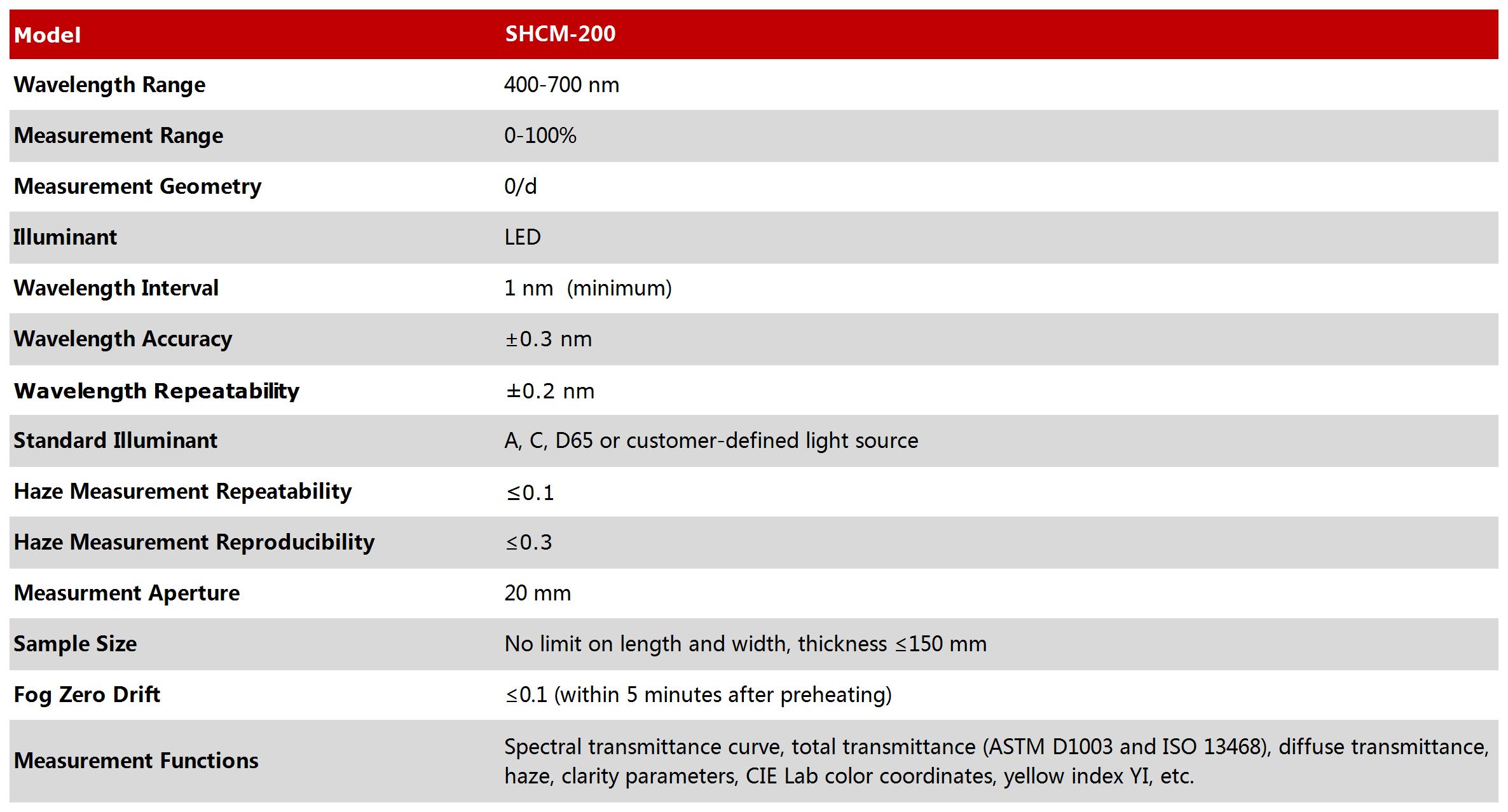

Technical Specifications
