PCE-2000 PCE Series Opto-Electric Measurement System
Simple Operation, Fast Speed, High Test Accuracy
Typical application scenarios
The system can test the relative spectral power distribution, chromaticity coordinates, dominant wavelength, peak wavelength, spectral purity, CCT, CRI, FWHM, luminous flux, radiant power, red ratio, color difference and other parameters of vehicle headlights, taillights, signal lights and headlight modules, and automatically draw the curve of the change of luminous flux/power/voltage/current over time for various automotive light sources after startup, and can automatically judge the rise time and stability time of the light source (the criteria can be input by the user).
Main characteristics
1. Low stray light and high optical linearity
With multiple EVERFINE patented technologies, the equipment has an ultra-low stray light level of 5E-5*1, a high optical linearity of 0.3%, and an ultra-high sensitivity of 0.01mcd.
2. High sensitivity and wide dynamic linear range
With scientific-grade CCD (back-illuminated, TE-cooled), it has excellent sensitivity (2.2μV/e-1), at the same time, the linear dynamic range is within 1% in three orders of magnitude, and it can reach a higher level after calibration.
3. High repeatability and stability
The temperature of the system is controlled to ±0.05℃ by constant temperature and cooling technology, so the measurement has high repeatability and stability.
4. With two measurement methods
It can achieve both instantaneous(pulse measurement) and steady-state (DC measurement) optical characteristic measurement of LED.

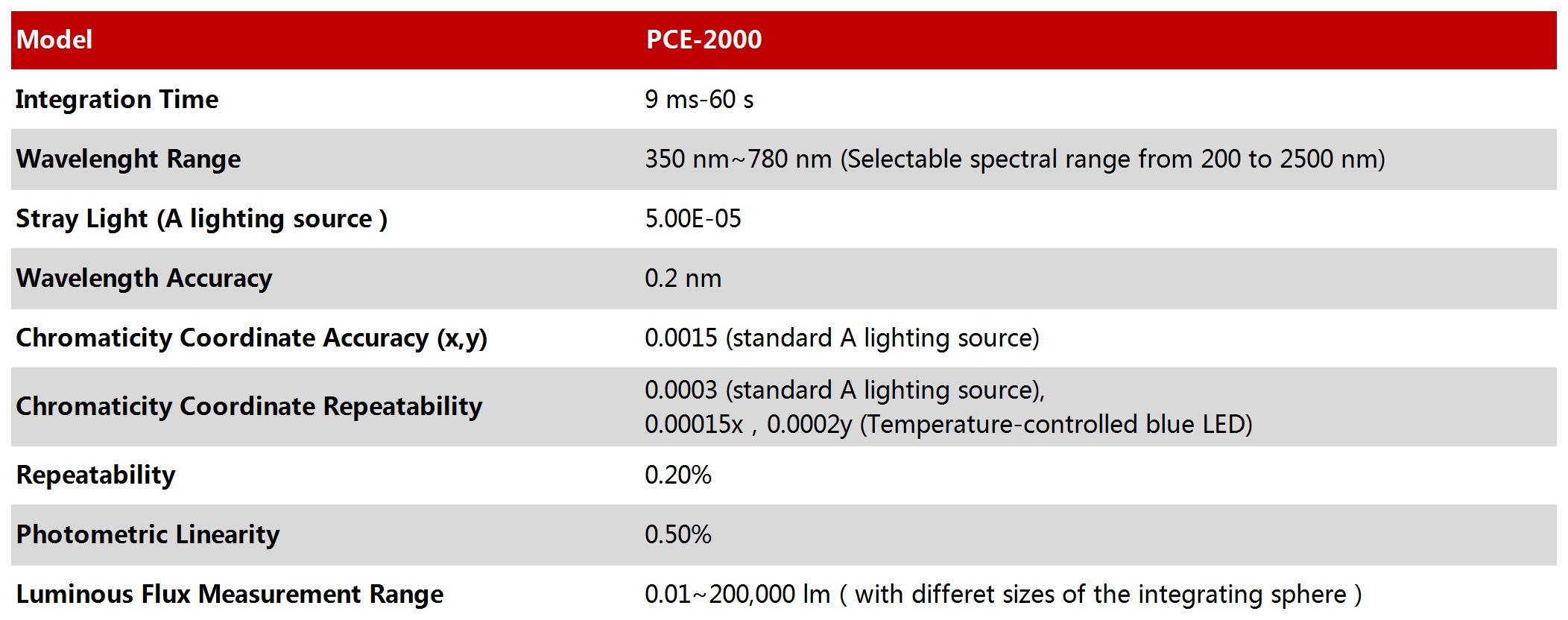

Technical Specifications
