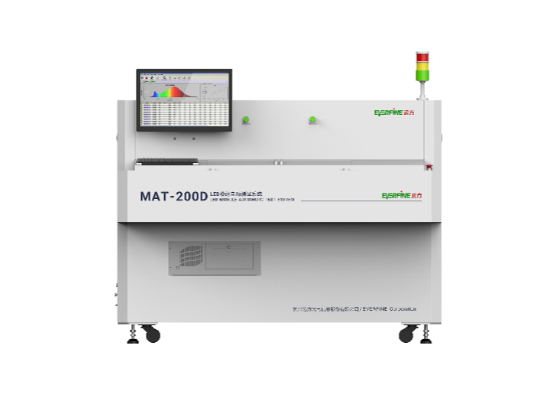

MAT-200D LED Module Automatic Test System
a testing system that integrates spectrum, light flux, and color parameter testing, which is efficient and intelligent for RGB light source board color consistency calibration.
Typical application scenarios
The system is typically used in the automotive industry for online testing of car light sources. The MAT-200D automatic online testing system uses a high-precision spectroradiometer family of products to test the light flux, color, and electrical parameters of each LED on the car light source board and achieves color consistency calibration with professional software. The system automatically determines whether the product is qualified by setting thresholds for relative luminosity and color gamut, making it very suitable for 100% online testing.
Main characteristics
1. The main features of the system are as follows
High-precision spectroradiometers are used to achieve high-precision color measurement.
The system is equipped with high-precision and fast spectroradiometers, which can accurately measure the light flux and color coordinates with high precision and repeatability.

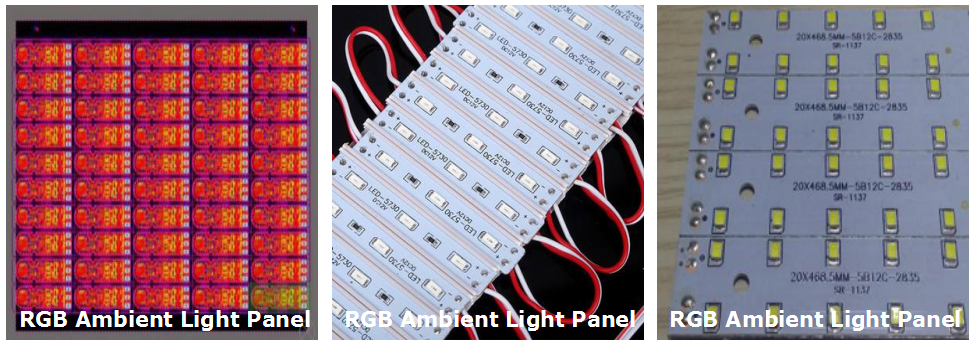

2. The software has strong compatibility and can meet the testing requirements of different types of ambient light modules
It supports multiple communication protocols and can write back the testing parameters to the chip. It also supports the collection of color parameters for various types of direct and side-emitting ambient light modules, with good compatibility.
3. The software can be customized to add functions according to customer requirements
It can support scanning functions to ensure that each lamp bead corresponds to the testing data, making it easy to trace back. The testing results can be connected to the customer's MES system.
4. The system can achieve multi-channel measurement, which improves testing efficiency

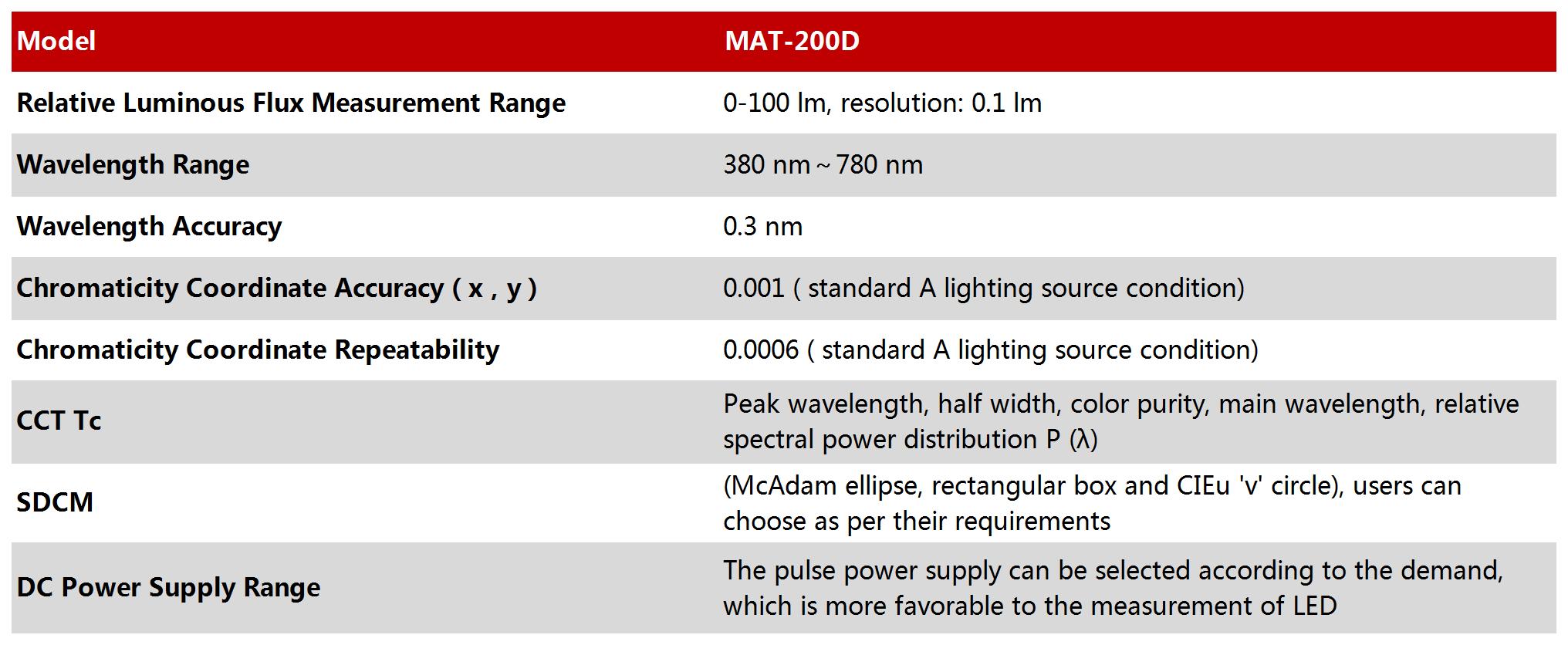

Technical Specifications
