MAT-200B LED Module Automatic Test System
MAT-200B is capable of accurately measuring luminance uniformity and color difference to meet different specifications of atmospheric light guides.
Typical application scenarios

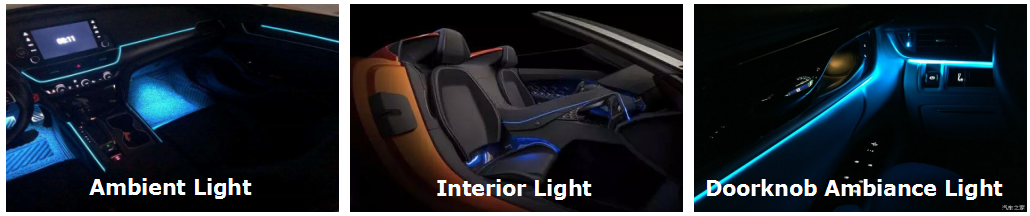

MAT-200B Led Module Automatic Test System is commonly used in conjunction with the EVERFINE CX series high-precision imaging colorimeter and specialized intelligent analysis software to achieve fast and accurate testing of luminance, chromaticity, and uniformity for vehicle displays (including ambient lighting, interior and exterior decorative lighting, projection lighting, etc.) with high automation, and is widely used for optical quality control of mass-produced products.
Main characteristics
Obtain the luminance, chromaticity, and uniformity of each point in one sampling measurement.
It uses a scientific-grade temperature-controlled array detector and the detector's spectral response is highly matched to the human eye's three-stimulus value curve. One measurement is equivalent to the simultaneous operation of millions of spot-type brightness meters, which can quickly and accurately obtain the luminance and chromaticity of each point in the field of view and analyze uniformity data.
2.Low luminance and high measurement repeatability.
The system uses a high-quality temperature-controlled detector and a professional noise circuit design, which can ensure high measurement repeatability and stability even under low brightness conditions (such as 0.001cd/m2).
3.Good compatibility to meet online detection of different types of ambient lights.
It supports ambient light assemblies/modules with different lighting modes and is compatible with different sizes of ambient light assemblies.
Powerful software analysis functions to meet different customer needs.
It can automatically identify and judge luminance, chromaticity uniformity, defects, dark spots, hot spots, color differences, yellowing, etc.
Technical Specifications
