PCR-W Series Programmable AC&DC Power Source
Supports the CSV file import
Simulate various arbitrary waveform output
Typical application scenarios
PCR-W series programmable AC&DC power source, with AC, DC, AC + DC and other output mode, output frequency range of 1.0 ~ 1 kHz, can easily simulate all kinds of arbitrary waveform output, support CSV file import, interference on the power supply line, with voltage, current harmonic test and analysis function, provide a variety of simulation test environment based on IEC61000-4 series standard, meet the needs of different industries, widely used in home appliances, power electronics, new energy, avionics, IEC standard test and other fields.
Main characteristics
1. Three output modes: AC, DC, AC+DC
PCR power supply can not only separately output AC, DC , but also output hybrid AC / DC , suitable for AC / DC servo motor, power frequency transformer bias and other application scenarios.
2. Single-phase and three-phase output mode switching
PCR-6000W, PCR-12000W has the function of single-phase / three-phase mode switching, and can independently control the phase and voltage, which is suitable for the simulation of three-phase imbalance, three-phase harmonic imbalance and other tests.
3. Arbitrary waveform editing
Integrated LIST, STEP, line simulation and other mode functions, directly edit the waveform output, can simulate the change of instantaneous power outage, burst, notch, slow rise, slow drop and other characteristics, and provide various types of power input for the verification of the performance and function of electronic products.
4. Mains waveform simulation
Due to the power consumption of the equipment, it is often affected by the mains power supply. The waveform data recorded by the power analyzer or oscilloscope, such as CSV, txt, Excel and other formats, can be directly imported into the PCR power supply, simplifying the waveform editing work, restoring the real mains waveform, and improving the anti-interference test of the product to the mains voltage change.
5. Harmonic synthesis and analysis
PCR power supply has powerful harmonic modeling capabilities, which can generate voltage waveforms required for harmonic immunity testing. It supports user-defined amplitudes of each harmonic and outputs specific harmonics, and can edit up to 50 harmonics.
6. Output of IEC Standard Characteristic waveform (Pro edition)
PCR power supply can simulate various power grid output waveforms with IEC standard characteristics, suitable for testing requirements in electronic equipment development. This includes IEC61000-4-11, IEC61000-4-13, IEC61000-4-14, IEC61000-4-28, IEC61000-4-29, and others.

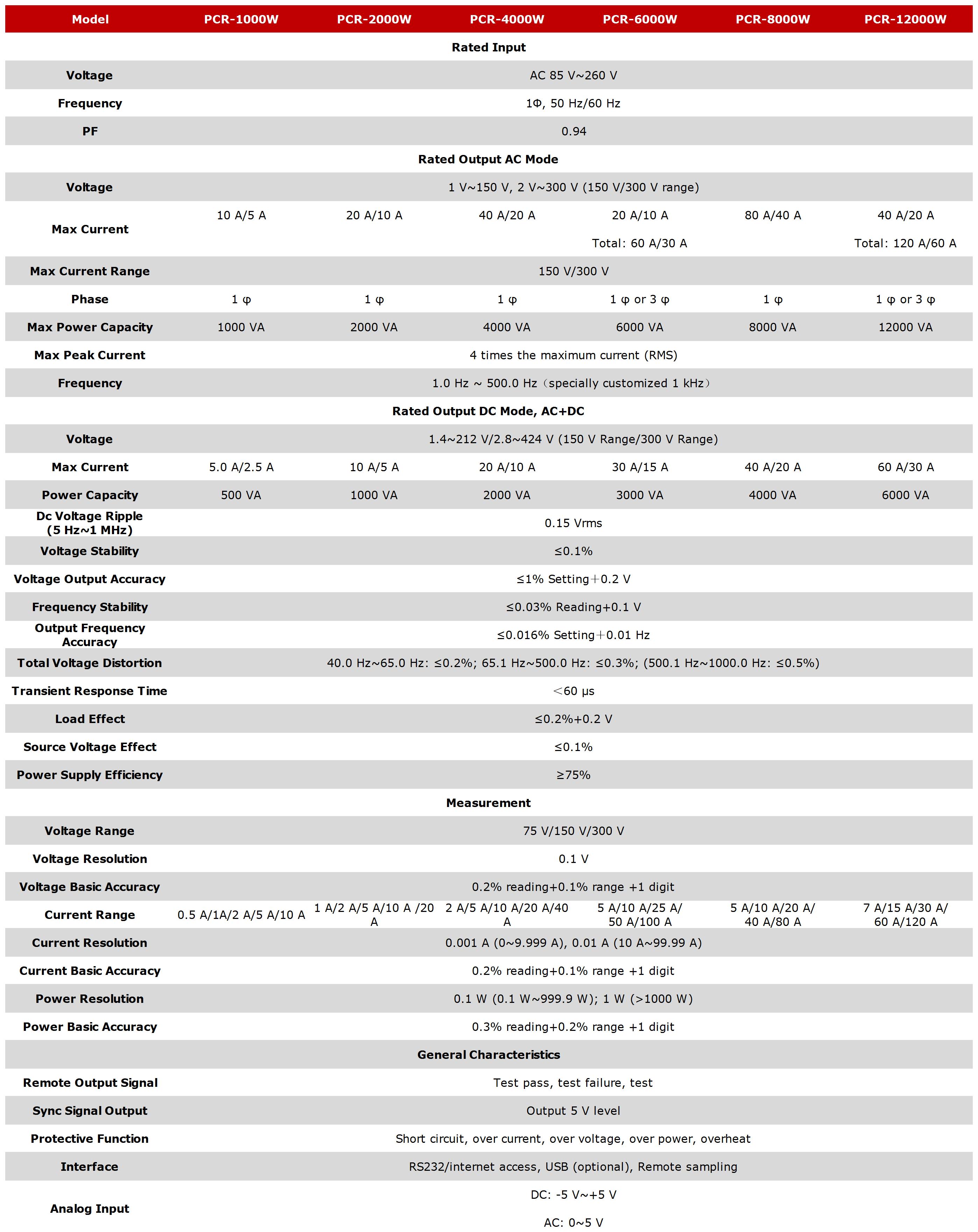

Technical Specifications
| Model | PCR1000W | PCR2000W | PCR4000W | PCR6000W | PCR8000W | PCR12000W |
| Rated Input | ||||||
| Voltage | AC 85V~260V | |||||
| Frequency | 1φ，50 Hz /60Hz | |||||
| Power Factor | 0.94 | |||||
| Rated Output (AC Mode) | ||||||
| Voltage | 1V~150V；2V~300V（150V/300V Range） | |||||
| Max Current | 10A/5A | 20A/10A | 40A/20A | 20A/10A Total:60A/30A | 80A/40A | 40A/20A Total:120A/60A |
| Range for Max. Current | 150V/300V | |||||
| Phase | 1φ | 1φ | 1φ | 1φ or 3φ | 1φ | 1φ or 3φ |
| Max Power Capacity | 1000VA | 2000VA | 4000VA | 6000VA | 8000VA | 12000VA |
| Max Peak Current | 4× Max Current(RMS) | |||||
| Frequency | 1.0Hz~ 500.0Hz(Customizable up to 1kHz) | |||||
| Rated Output (DC Mode, AC+DC Mode) | ||||||
| Voltage | 1.4~212V/2.8~424V（150V Range/300V Range） | |||||
| Max Current | 5.0A/2.5A | 10A/5A | 20A/10A | 30A/15A | 40A/20A | 60A/30A |
| Power Capacity | 500VA | 1000VA | 2000VA | 3000VA | 4000VA | 6000VA |
| DC Voltage Ripple | (5HZ~1MHz)0.15Vrms | |||||
| Voltage Stability | ≤0.1% | |||||
| Voltage Output Accuracy | ≤1% of set value＋0.2V | |||||
| Frequency Stability | ≤0.03% of reading+0.1Hz | |||||
| Output Frequency Accuracy | ≤0.016% of set value＋0.01Hz | |||||
| Total Voltage Distortion | 40.0Hz~65.0Hz：≤0.2%； 65.1Hz~500.0Hz：≤0.3% ； 500.1Hz~1000.0Hz：≤0.5% | |||||
| Transient Response Time | ＜60μs | |||||
| Load Effect | ≤0.2%+0.2V | |||||
| Source Voltage Effect | ≤0.1% | |||||
| Power Supply Efficiency | ≥75% | |||||
| Measurement | ||||||
| Voltage Ranges | 75V/150V/300V | |||||
| Voltage Resolution | 0.1V | |||||
| Basic Voltage Accuracy | 0.2%reading+0.1%range +1digit | |||||
| Current Ranges | 0.5A/1A/2A/5A/10A | 1A/2A/5A/10A /20A | 2A/5A/10A/20A/40A | 5A/10A/25A/50A/100A | 5A/10A/20A/40A/80A | 7A/15A/30A/60A/120A |
| Current Resolution | 0.001A(0-9.999A); 0.01A(10A~99.99A) | |||||
| Basic Current Accuracy | 0.2%reading+0.1%range +1digit | |||||
| Power Resolution | 0.1W(0.1W-999.9W)； 1W(≥1000W) | |||||
| Basic Power Accuracy | 0.3%reading+0.2%range +1digit | |||||
| General Charastics | ||||||
| Remote Output Signals | Pass, Fail, Test in progress | |||||
| Synchronization Signal Output | 5V TTL level | |||||
| Protection Features | Short circuit, Overcurrent, Overvoltage, Overpower, Overtemperature | |||||
| Interfaces | RS232/RS485/Ethernet（optional）, remote sense | |||||
| Analog Input | DC：-5V~+5V AC：0~5V | |||||
